Features
- Take samples from 12 bubble free cells at up to 20 sampling time
points
- Open air system, no pressure build up during the tests, no leakage
- Syringe pump sampling system accuracy to ± 1 %
- Sampling takes place before media replacement to avoid sample
dilution
- Printer for full report

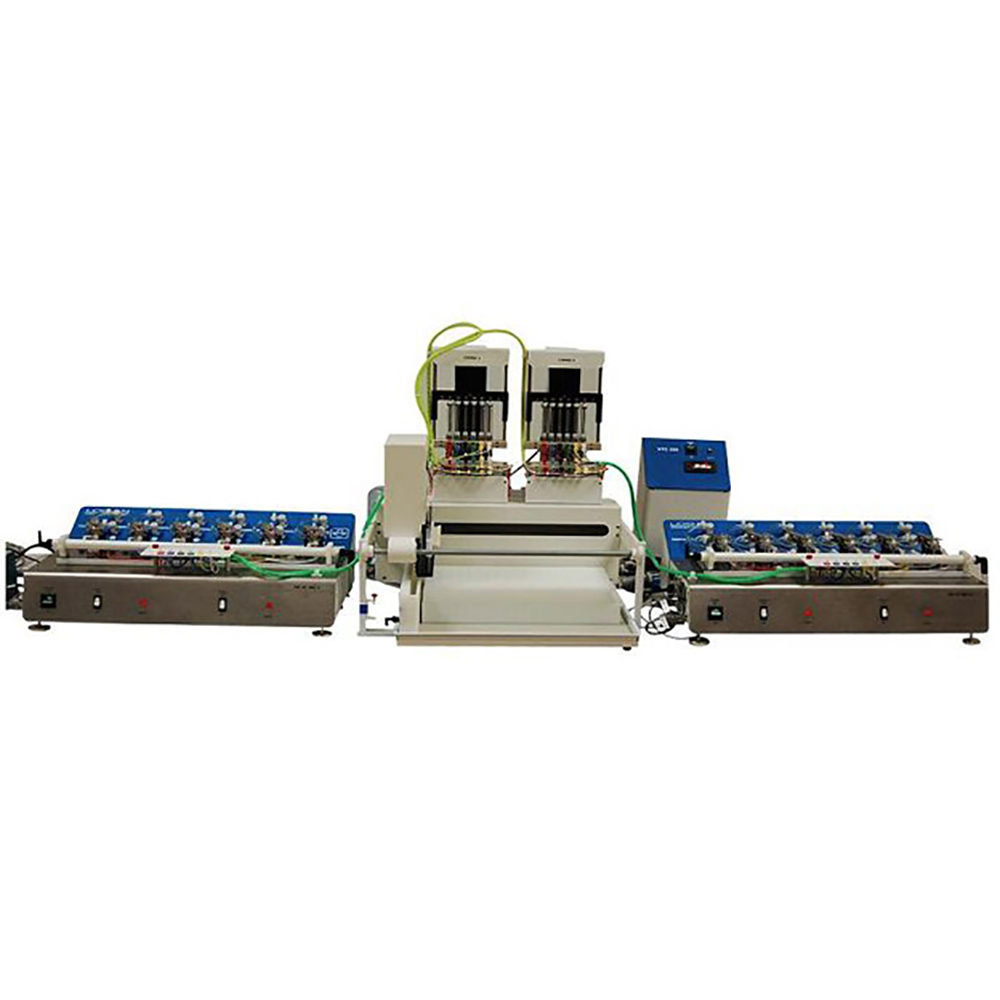

The LOGAN SYSTEM 912-12 is
designed to save valuable time by delivering precise transdermal samples into
HPLC vials automatically. The membrane is mounted between the cell cap (donor)
and the cell body (receptor). The membrane is bathed from below by an isotonic
saline solution. Temperature is maintained at 37°C by thermostatically
controlled water which enters the lower port of the water jacket surrounding
the saline solution chamber and circulates out through the upper port. Water is
supplied and removed by two (upper and lower) stainless steel manifolds
connected to a constant temperature bath.
Homogenous distribution of
temperature in the saline bathing solution is accomplished by the agitating
motion of a Teflon-covered magnetic stirring bar, driven by an external magnet
mounted on a timing motor. The cell cap is open to the air, exposing the membrane’s
upper surface to ambient conditions. The open cap also allows for a finite
dosage application of the compound being studied.
The SYP Series Syringe Pump
Module withdraws and measures sample volumes from transdermal diffusion cells
at each time interval. Individual samples are dispensed simultaneously into
HPLC vials that are stored in the SCT Series Sample Collectors. To avoid sample
dilution, the replacement of media takes place right after each sampling. The
lift plate tilts all Franz cells to allow any air bubbles to purge out of the
cells while doing the media replacement. This will insure that there will be no
air bubbles under the skin/patch; the tilted plate goes back to the horizontal
position once the media replacement is complete and continues the test.
Specifications
